Product Details

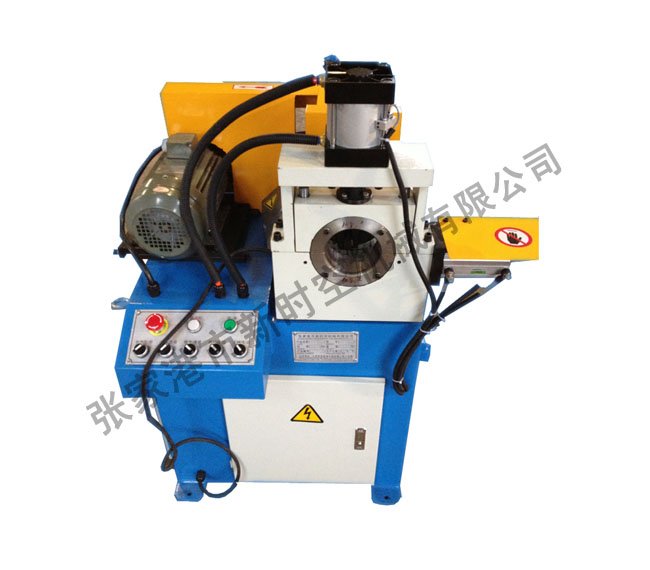

80 Chamfering machine
- Update：2016-04-22 13:37:46
- Class：
- Type：
- Price：
- TAG：
Product description
Mechanical features:
1. Die with the knife dish after a sophisticated design, to ensure accurate processing object and the cutter center line of the same. Can be a complete pipe outside evenly, an internal Angle and tube processing.
2. The use of the change of the pulley can convert multiple speed, according to a variety of different materials of metal materials, achieve the longest tool life.
3. The two feed speed to save time, slow speed is easy to adjust, processing and perfect.
Technical parameters:
|
Metal circular tube/round rod end chamfering machine |
||
|
|
EF-PV/52 |
EF-AC/80 |
|
Host motor |
1HP×4P |
3HP×6P |
|
Spindle speed |
According to the processing of different materials and select the appropriate speed conversion pulley |
|
|
Processing diameterO.D |
9-52(mm) |
30-82(mm) |
|
Processing of round cornerO.D |
9-25(mm) |
2-50(mm) |
|
Use compression |
6-8KGS/cm2 |
6-8KGS/cm2 |
|
Air |
60ml/min |
120ml/min |
|
Standard |
1. The host machine 2. Fixture a 3. Standard wiht a 4. A group of the cutting tools |
|
|
Special accessories |
1. Different sizes fixture 2. Special knife holder and operation 3. Special cutter head |
|
◆Note: EF - PV / 52 processing 9 mm - 18 mm pipe need special small and special blades of the cutting tools
