  • DW-50NC

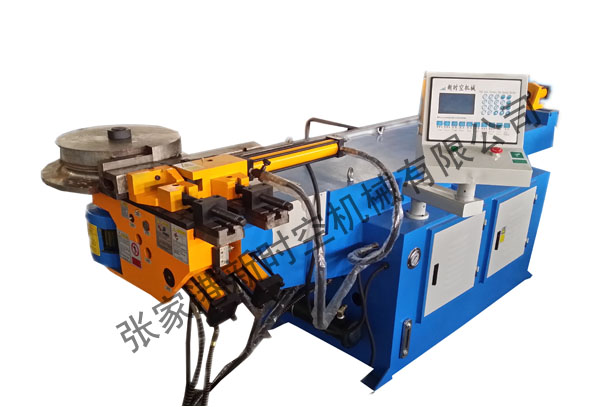

DW-50NC

  • Update：2016-04-22 12:51:35
  • Class：
  • Type：
  • Price：
  • TAG：

Product description

First ,mechanical properties and the main scope of application

DW50NC type numerical control hydraulic pipe bending machine adopts hydraulic drive. Control accuracy is increased greatly, with bent pipe power, bending tube of high precision, all programming and input directly in the dialogue type on the screen, all the information that can be selected automatically display in Chinese, operation is convenient, rapid and accurate. High-performance medium of pipe bender, control of the simple controller, make your more convenient operation and programming, wide range of USES, use in mass production and standardization of production, such as in car and motorcycle parts, such as the exhaust pipe, seat cushion, bumper, sports equipment, and all of the production of iron furniture. At the same time used in boiler, aerospace, shipbuilding and general engineering piping.

Second, the main technical parameters


Main technical parameters

unit

Numerical range

Biggest pipe bending capacity

mm

￠50×3

Bending radius of

mm

30-250

Bending Angle range

degree

≤190

Biggest wear core range

mm

1800

Bending speed

deg/sec

80

Bending precision

degree

±0.20

Total power of pump motor

Kw

5.5

Hydraulic system pressure

Mpa

12

Gross weight machine

Kg

1300

Machine installation dimensions

mm

3200×1100×1400



Third, characteristics of NC tube bending machine

1, the machine adopts single chip control, and numerical control module, man-machine interface dialogue type operation, program setting simple and easy.
2, can be free to choose, manual, semi-automatic and fully automatic functions.
3, bend for hydraulic drive.
4, program setting, each file can be set 16 automatic pipe bending, and 20 bend Angle, the memory can store 16 team files.
5, in the process of machining the mobile controller shown on the display screen Angle, pipe bending processing value now, still can set step action, half a cycle, the whole cycle operation.
6, has the function of automatic detection fault and failure when any abnormal movements, or any dangerous when the machine will stop immediately issued a warning, show the cause of the problem, help the operator.

Four, mechanical, electrical, hydraulic configuration is as follows:


Name

Materials or brand

Production

“Bed”

A3 steel plate welding (after tempering treatment)

Domestic production

"Head" (with high performance, bending, tensile and wear)

Nodular cast iron (QT500-7)

Domestic casting

"Bend arm" (with high performance, bending, tensile and wear)

ZG45 steel (after tempering treatment,)

Domestic JiaoZhu

Shaft bearing

NSK

Japan

Oil cylinder

Adopt imported sealing ring made of

Homemade

Electric machine

Taihu

Domestic (wuxi)

Computer version



changzhou

Relay

omron

Japan

contactor

taian

Singapore

Solenoid valve

Union of

Shanghai

Oil block



Homemade

oil pump

Union of

Shanghai
