Product Details

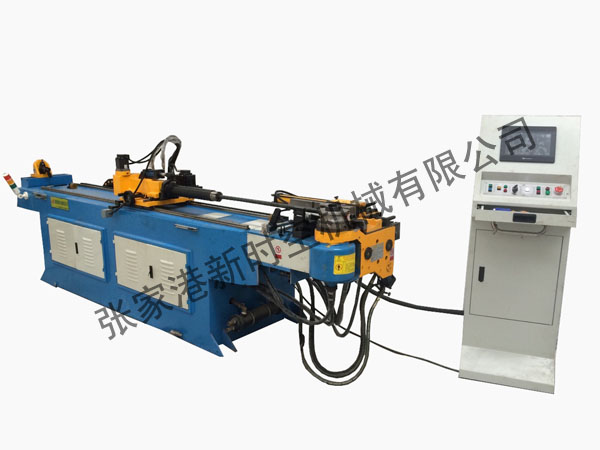

DW-38NC
- Update：2016-04-22 12:48:38
- Class：
- Type：
- Price：
- TAG：
Product description
Features:
1. The single-chip microcomputer control, the machine operation is very stable.
2. Has manual, automatic, half cycle, multiple functions such as full cycle arbitrary choice.
3. Multiple Angle setting (0-185 °) in any single choice may also be more than two kinds of continuous choice.
4. Portable foot switch, with automatic startup, emergency stop, stop continuous three functions, safety.
5. The large capacity cooling circulatory system, make the machine more stable operation.
6. Simple mould replacement, facilitate flexible production.
Head, bent pipe design is exquisite, provide maximum elbow space
It is recommended to use the unit:
Auto parts (brake tubing, bumper, muffler, chairs, etc.). Motorcycle manufacturing, fitness equipment, steel furniture, air conditioning and refrigeration, bicycle industry, sanitary equipment, etc.
The basic parameters:
|
Main specifications |
unit |
DW-38NC |
Note |
|
Maximum bending diameter * wall thickness |
mm |
Φ38×2 |
1. The minimum bending radius according to the pipe diameter
2. The maximum bending radius can according to customer's requirements
3. The maximum wear core length can according to customer's requirements
|
|
Maximum bending radius |
mm |
R260 |
|
|
Minimum bending radius |
mm |
R15 |
|
|
Maximum bending Angle |
Degree |
190 |
|
|
Wear core length standard |
mm |
1600 |
|
|
Control system |
|
Microcomputer control |
|
|
Pipe allows the elbow |
Unit |
16 |
|
|
Can store the parts number |
Unit |
16×16 |
|
|
Hydraulic motor power |
KW |
4 |
|
|
system maximum pressure |
Mpa |
12 |
|
|
Hydraulic system control |
|
Solenoid valve |
|
|
Tank volume |
L |
110 |
|
|
Machine tool shape dimension |
mm |
2600×600×1000 |
|
|
Machine weight |
Kg |
950 |
